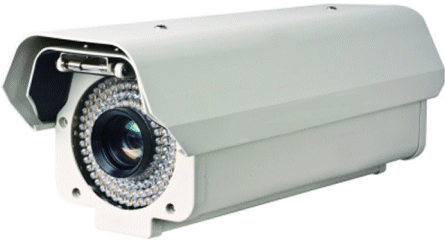

These Top Of The Line Bullet CCTV cameras use a 5-50mm manual varifocal lens for long range imaging and an array of 144 infrared LED's for surveillance in total darkness.

A 1/3" Sony 700TVL color CCD video sensor provide image capturing.
An automatic mechanical IR filter helps keep images in focus, minimizing IR shift when switching from standard to infrared mode.

This bullet surveillance camera has an all metal housing. Read full details below.

Camera Specifications:
1. High resolution 700TVL, low illumination LPR camera
2. f6-60mm auto iris various focal lens (f5-100mm optional) , <60M distance.
3. LED luminance is adjustable.144 pcs LED yellow light. Color image at night. Luminance adjustable.
4. HLC (highlight compression) function. Manual setting before use. Auto shift from daytime setting mode to night setting mode. Detect car license plates clearly with strong light. HLC value is adjustable and visible on master board for better view number plates. Good anti-headlights night effect.
5.Electronic shutter speed: 1/50, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000 etc. 1/250 is for 120KM/H speed.1/500 is for 160KM/H, 1/1000 for 200KM/H. Setting by DIP switch.
6.backlight compensation ON/OFF
7.AGC ON/OFF display: HLC value, LED brightness value, BLC ON/OFF. With digital display on master board, it is very convenient for lot installation when every camera has identical setting parameter .
9. IP66, waterproof. Anti-fog between lens and front glasses. Heater, radiator inside camera. High quality double shield housing.
10.double front glasses to avoid light halo and spot when LED is ON. 11. Surveillance area: one lane wide
12.IR lights optional, Black/White image at night

Below is a short list of functions and video adjustments you can make in the OSD-menu:
•Vari-focusing Lens (f=6-60mm)
•Auto HLC
•Special auxiliary light (147 LEDs)
•Built-in Thermostat
•Shutter Control
•Day/Night Settings
•White Balance Controls
•Luminance Controls
•Backlight Compensation Controls
•Picture quality control

Please Note: This Surveillance Camera System Is A Special Order See Details.

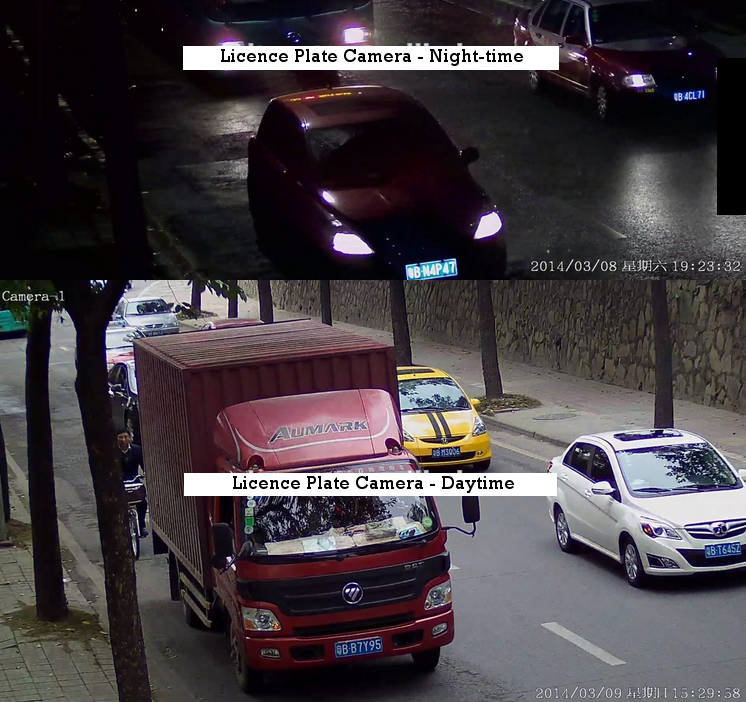

If you are looking for an hard wired outdoor security camera you can use for long range license plate capture during the day or night, with advanced features like a mechanical IR filter and the latest Sony Effio video processor, look no further.

We put a 1/3" color Sony EXView CCD video sensor at the front end of this camera. Mechanical optics are provided by a manual 6-60mm varifocal lens with auto-iris. This combination creates crystal clear imaging data that feeds an advanced Effio video processor. Along with sensitivity that provides true day/night operation, this camera has an automatic infrared subsystem and a mechanical IR filter to prevent IR-related focus shift.

Users and installers alike will appreciate the many fine features available in the menu, thanks in a large part to the Sony Effio video processor. The Effio video processor sits at the analog front end (AFE) of the video image capture process. This provides the DSP circuitry with clean and efficient signals that make its job easier, freeing up space for further enhancements to be added to the available real estate on the chipset at micro-component level. These enhancements create higher resolution and provide more options.

When the camera picks up an image, electric signals originate in the video sensor and pass immediately to an analog-to-digital convertor (ADC) and other front-end signal processing circuitry. This is where the Effio video processor works, in the analog front-end (AFE). It intercepts and enhances raw video data and then passes it to the digital signal processor (DSP), where digitization and more enhancement and amplification occurs.

Many manufacturers are advertising Effio technology in their cameras. It is worth noting that Effio video processing depends on support circuitry and is not a standalone product. Our products maintain original Effio quality by using matched Sony components. Beware of similar products that may be advertised at far lower prices because they will likely contain off-the-shelf (unmatched) components.

Our engineers have already programmed default settings for optimum performance. This "pre-programming" by professional technicians often means the camera is good-to-go 99% of the time straight from the box. Sometimes only minimum configuration changes may be required to get a perfect picture. Reduced setup time and high quality imaging make this camera attractive for many large-scale installations.
System Includes The Above 12VDC Power supply, 4 Channels

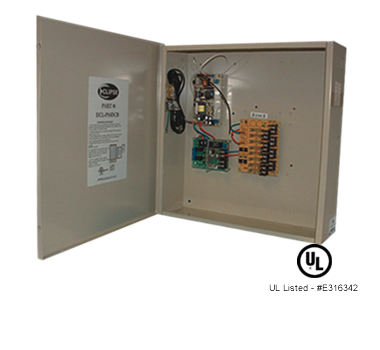

This UL listed wall mount power supply is housed in a metal cabinet. It has four (4) individually fused outputs and a status LED. The metal cabinet can be locked and has marked knockouts for customization. Regulated 12V Security Camera Power This 4-channel DC power supply plugs into a standard North American 110/120VAC wall outlet. It is designed for permanent installation. Maximum power (current) draw is 4 amps, measured as a sum of all 4 channels. A pot. is available so the user can fine-tune the output voltage (in a range of 11-14VDC, typical).

•UL #E316342
•Regulated 12VDC outputs
• Each output individually fused LED indicator
• Requires 110/120VAC source Max. current:
• 4 amps
• Adjustment pot. on board for fine tuning voltage output.
• Dimensions: 247.65mm x 95.25mm x 206.38mm (9.75" x 3.75" x 8.125")
Attention: If you choose to use a Internet networking option, this product requires you have a moderate level of networking comprehension. Since all computer networks are different, we can only provide support for basic networking setup. This should be taken into consideration when purchasing this product. Please contact your network administrator or network consultant to properly set up the networking option in your unique scenario.

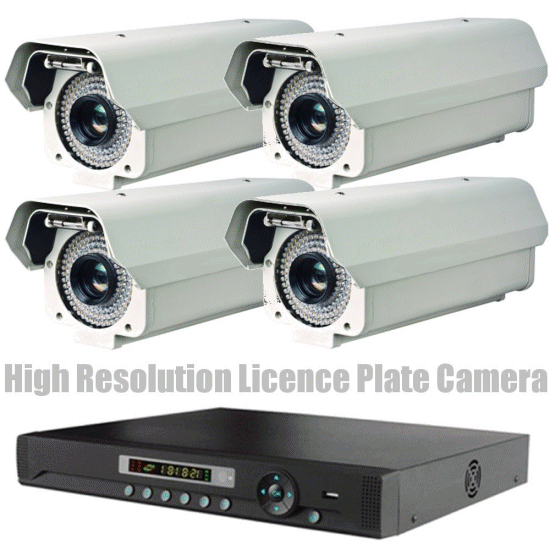

System Includes Everything Except Monitor Screen:
4 - 1/3 ccd 700TVL NightVision Cameras (Color Daytime-B&W Night)
4 - Camera Mounts
1 - 8 Channel Stand Alone DVR With 3TB HardDrive
1 - 12VDC 4 Channel Power Supply
4 - 100ft CCTV Cables

Place Your Order Below Now!
Credit Cards Accepted.

For Phone Orders Call:- 561-953-8925 (8am To 8pm est)

$4870.00 + 85.00 S/H
Shipping by US Post Priority Mail

  • Special Order Camera System: No Money Refunds, Exchange To The Same If An Item Happens To Be Defective Within Warranty Period.
  • Any defective item will be exchanged by free replacement within Warranty Period
  • Please follow instructions on your User Manual or contact our customer service for any operating or
    technical questions before sending back the unit
  • If an item arrives or becomes defective (manufacturing defect) within 180 Days from the date of purchase the item will be inspected, repaired by certified technicians, or replaced and returned to the Buyer.
    For such rare situations, send us an email at the address provided when you purchased the item, and we will reply with an RMA number and return instructions. Items must be shipped to the address provided with your RMA, Shipping costs to return products are the Customer's responsibility. We will pay the shipping costs to send the item back to you.
  • Unit must be undamaged (Physically), and in the original box with all original contents in it.
  • Shipping and handling fees are non refundable
  • Buyers are responsible for return shipping cost.
